Freestyle 项目

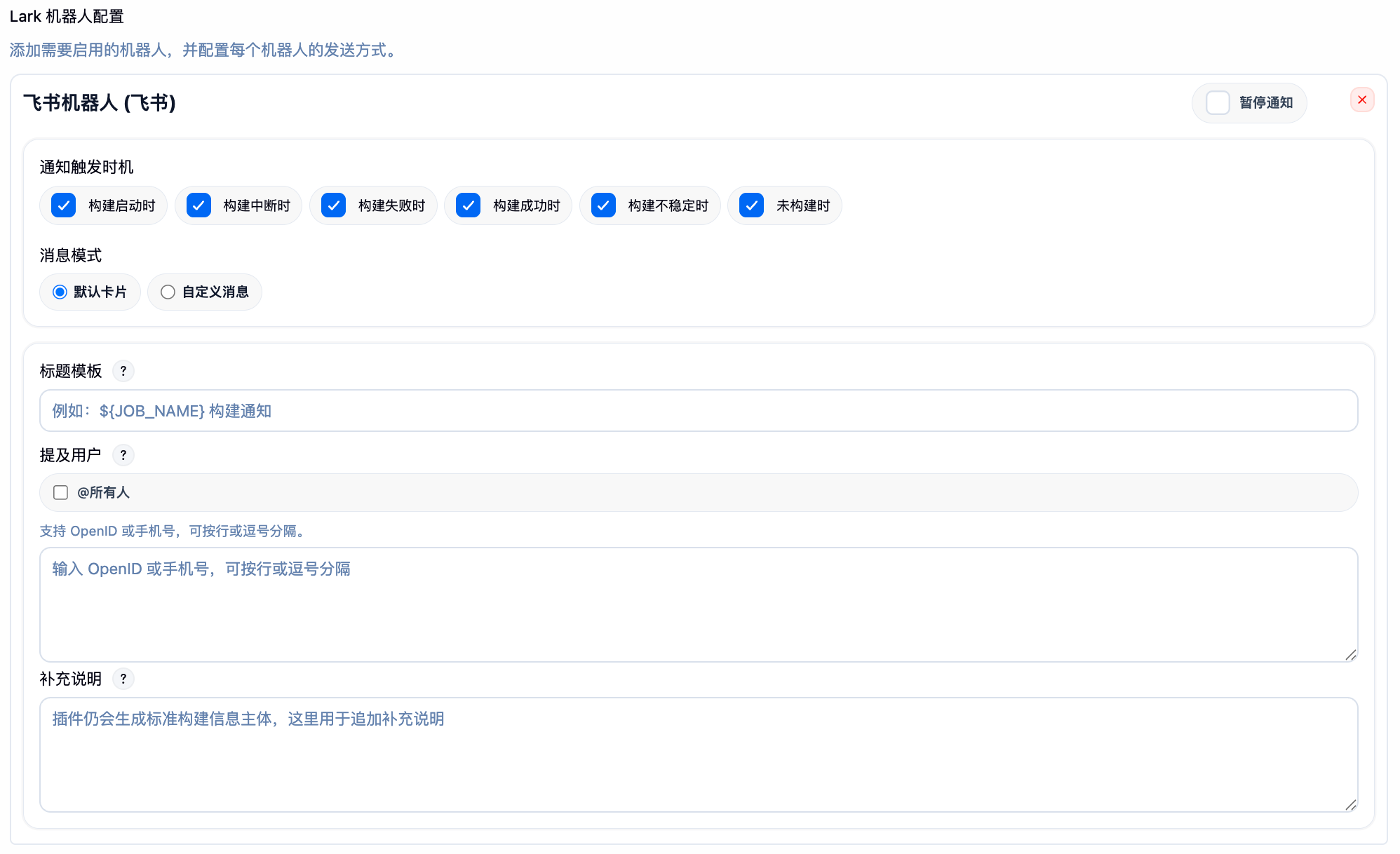

1. 机器人配置

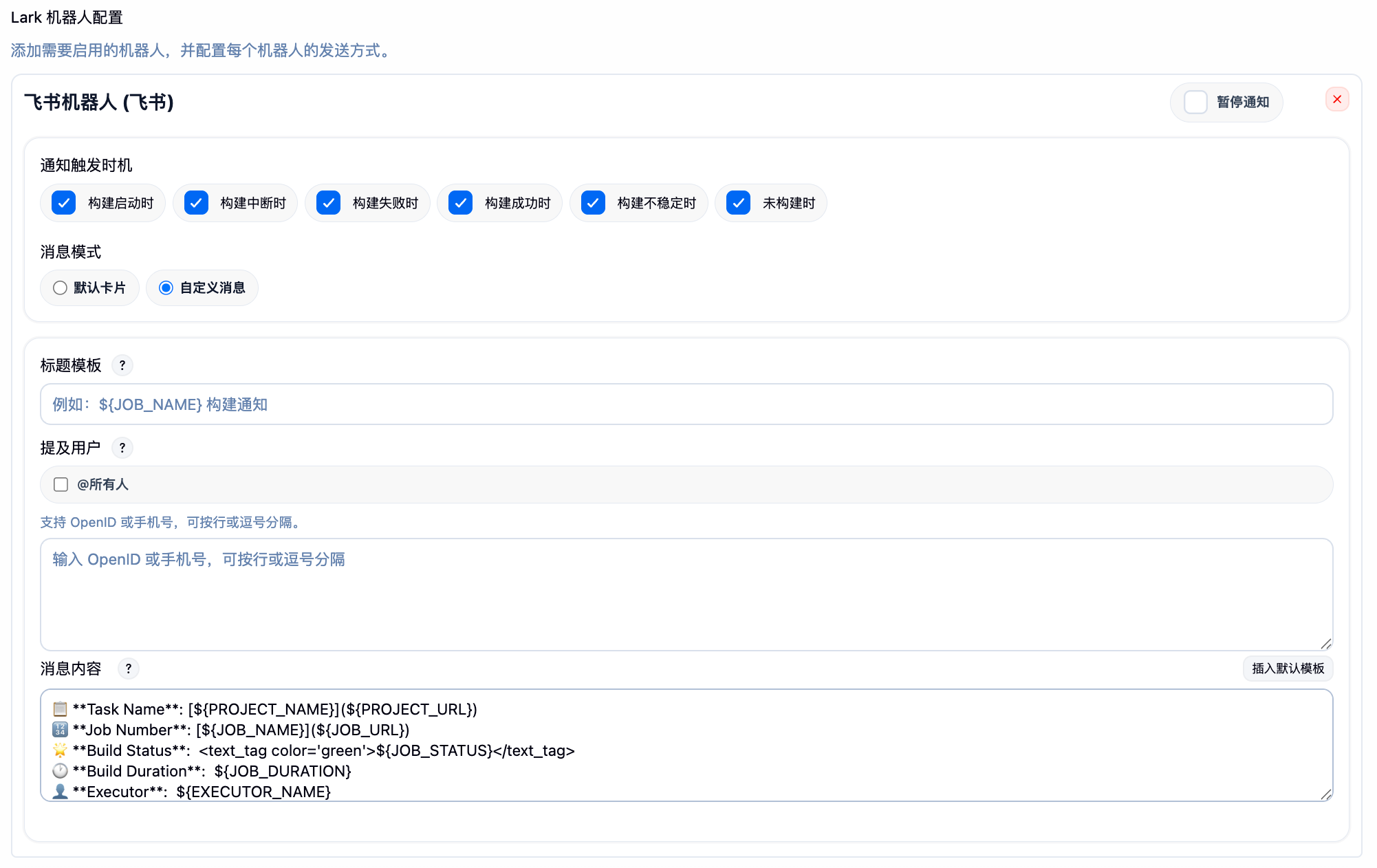

2. 自定义消息内容

text
📋 **任务名称**:[${PROJECT_NAME}](${JENKINS_URL}/job/${PROJECT_NAME}/)
🔢 **任务编号**:[${JOB_NAME}](${JENKINS_URL}/job/${PROJECT_NAME}/${BUILD_NUMBER}/)
🌟 **构建状态**:  <text_tag color='blue'>${JOB_STATUS}</text_tag>
🕐 **构建用时**:  ${JOB_DURATION}
👤 **执  行 者**:  ${EXECUTOR_NAME}
![图片](img_v2_16d4ea4f-6cd5-48fa-97fd-25c8d4e79b0g)

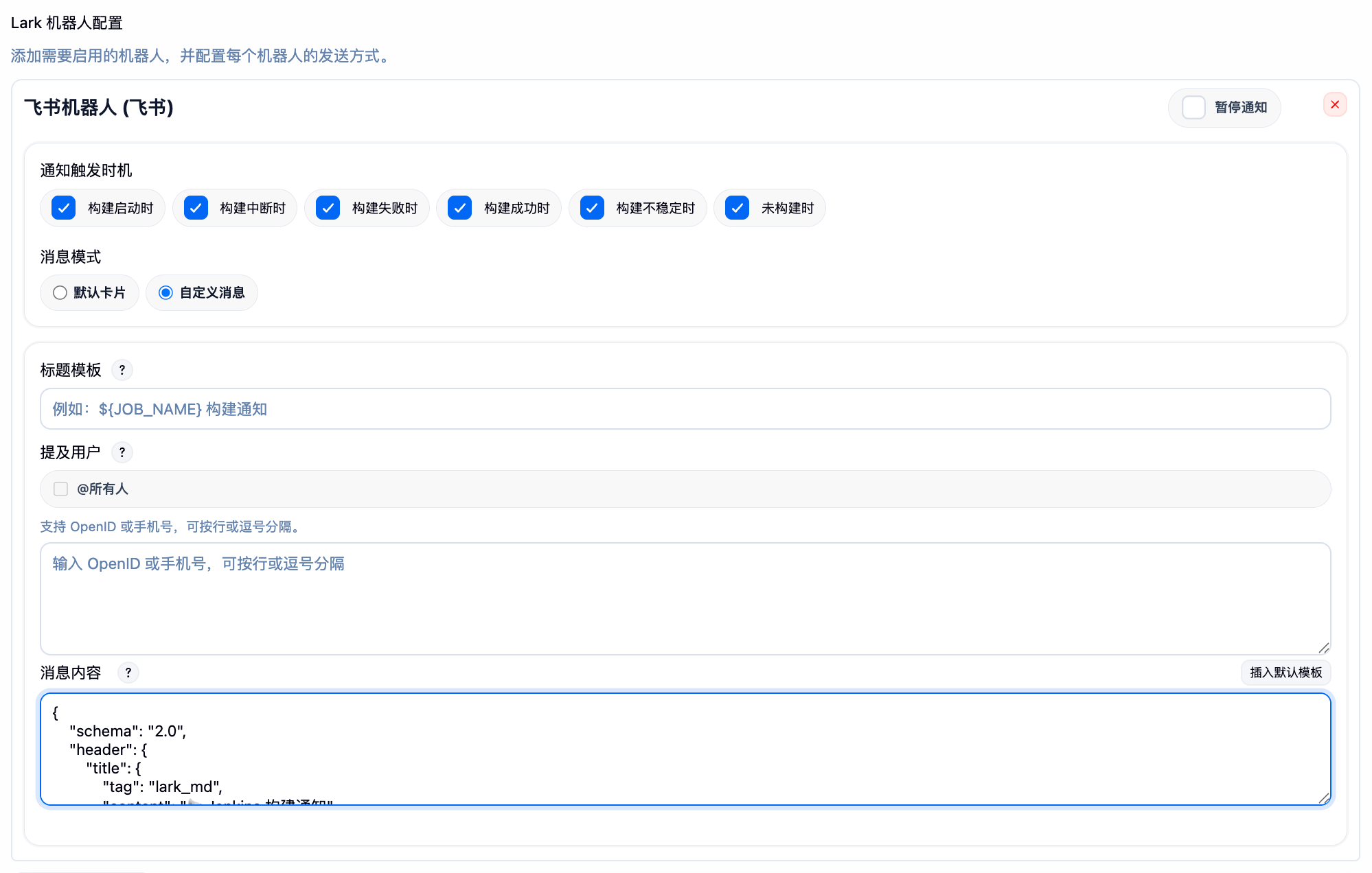

3. 自定义卡片消息

通过如下 消息卡片搭建平台 生成卡片消息体:

Json
{
  "config": {
    "wide_screen_mode": true,
    "enable_forward": true
  },
  "header": {
    "template": "blue",
    "title": {
      "tag": "plain_text",
      "content": " 📢 Jenkins 构建通知"
    }
  },
  "elements": [
    {
      "alt": {
        "content": "这是正文顶部的图片哦!",
        "tag": "plain_text"
      },
      "img_key": "img_v2_cb03ec35-a638-4b93-9e6f-5e2d0e549deg",
      "tag": "img",
      "mode": "fit_horizontal",
      "compact_width": false
    },
    {
      "tag": "hr"
    },
    {
      "tag": "markdown",
      "content": "📋 **任务名称**:[${PROJECT_NAME}](${JENKINS_URL}/job/${PROJECT_NAME}/)\n🔢 **任务编号**:[${JOB_NAME}](${JENKINS_URL}/job/${PROJECT_NAME}/${BUILD_NUMBER}/)\n🌟 **构建状态**:  <text_tag color='blue'>${JOB_STATUS}</text_tag>\n🕐 **构建用时**:  ${JOB_DURATION}\n👤 **执  行 者**:  ${EXECUTOR_NAME}\n"
    },
    {
      "tag": "hr"
    },
    {
      "tag": "action",
      "actions": [
        {
          "tag": "button",
          "url": "${JENKINS_URL}/job/${PROJECT_NAME}/${BUILD_NUMBER}/changes",
          "type": "primary",
          "text": {
            "tag": "plain_text",
            "content": "更改记录"
          }
        },
        {
          "tag": "button",
          "url": "${JENKINS_URL}/job/${PROJECT_NAME}/${BUILD_NUMBER}/console",
          "type": "primary",
          "text": {
            "tag": "plain_text",
            "content": "控制台"
          }
        }
      ]
    }
  ]
}
